KiTEC Composite Pipes & Fittings

Composite PR Pipe
Rating 13.8 Kg/cm2 @ 23°C & 11 Kg/cm2 @ 60*C
Short term excursions to 95°C will not affect performance of pipe
Designed life span of KiTEC piping system is 50 years
Pipe are black in color and are UV Resistant
Can be used for Outdoor & Concealed Installations
Sizes - 10 mm to 50 mm ID of Pipe

Composite PL Pipe
Rating 12 Kg/cm2 @ 23°C & 6 Kg/cm2 @ 65*C
Inner layer in natural color & Outer layer in black with continuous blue line
Designed life span of KiTEC piping system is 50 years
Pipe are black in color and are UV Resistant
Can be used for Outdoor & Concealed Installations
Sizes - 12 mm to 90 mm ID

Composite PEX Pipe
Rating 5 Kg/cm2 @ 95°C & 8 Kg/cm2 @ 80*C
Short term excursions to 110°C will not affect performance of pipe
PEX is Cross Linked Polyethylene
Pipe have inner layer in Orange and outer Black with continuous Red line
Can be used for Outdoor & Concealed Installations
Sizes - 12 mm to 90 mm ID

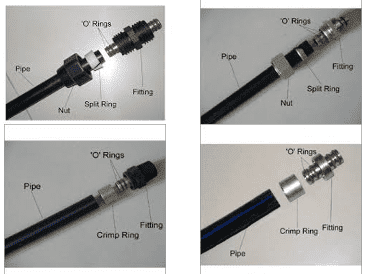

Composite, SS & Brass Fittings
Compression / Crimp fittings with Internal Sealing arrangement
Composite Compression Fittings -
upto 90 mm
Composite Crimp Fittings - 12, 16, 20 mm
Brass Compression Fittings - upto 90 mm
Brass Crimp Fittings - 12, 16, 20 mm
SS Compression Fittings 40, 50, 63, 75, 90 mm

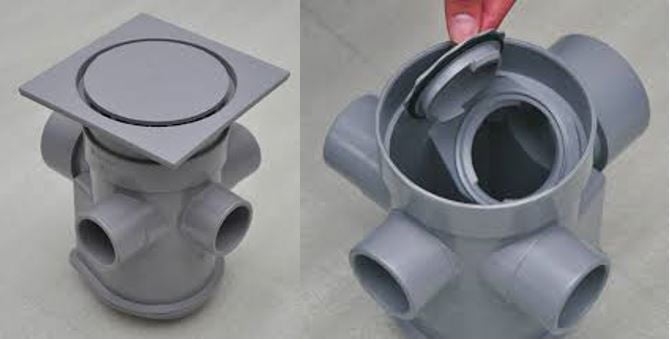

Multi Floor Trap
63 mm Water Seal
Trap with flap & cleaning eye is integral moulded part
Cleaning eye for ease of maintenance
Easy to open and fit
Side flow circular grating with solid top
Waste water in trap seal hidden from view
Three optional Dual inlet connections
suitable for 40mm or 50mm OD piping
Full bore optional Dual Outlet
63mm or 75mm Outlet

Thermostatic Mixing Valve (TMV)
Thermostatic Mixing Valve ensures that Cold Water mixes with the Hot Water to provide Water at set temperature
Working pressure - 0.03-1 Mpa
Ideal Working Pressure - 0.1-0.5 Mpa
Cold Water Supply Temp - 5-29*C
Hot Water Supply Temp - 40-99*C
Setting Range - 35-55*C
Rated Flow Rate - 28-32 LPM
Sizes - 3/4", 1", 1.25"
KiTEC Composite Pipes & Fittings

Composite PR Pipe
Rating 13.8 Kg/cm2 @ 23°C & 11 Kg/cm2 @ 60*C
Short term excursions to 95°C will not affect performance of pipe
Designed life span of KiTEC piping system is 50 years
Pipe are black in color and are UV Resistant
Can be used for Outdoor & Concealed Installations
Sizes - 10 mm to 50 mm ID of Pipe

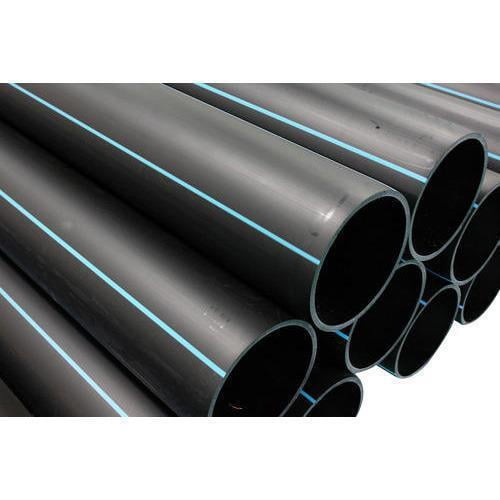

Composite PL Pipe
Rating 12 Kg/cm2 @ 23°C & 6 Kg/cm2 @ 65*C
Inner layer in natural color & Outer layer in black with continuous blue line
Designed life span of KiTEC piping system is 50 years
Pipe are black in color and are UV Resistant
Can be used for Outdoor & Concealed Installations
Sizes - 12 mm to 90 mm ID

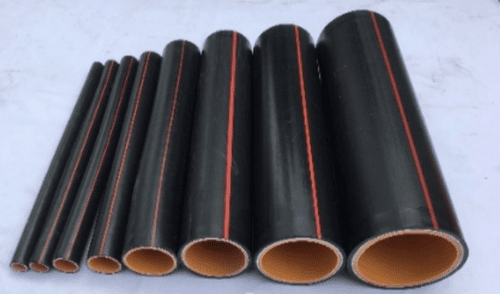

Composite PEX Pipe
