McAlpine Traps & Connectors

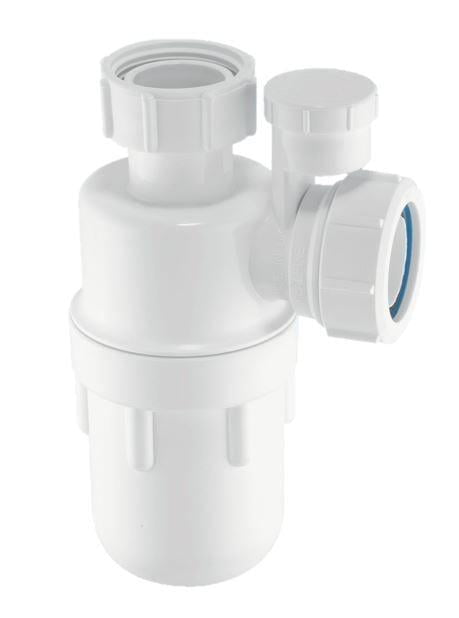

Anti-Syphon Bottle Trap
75mm Water Seal with Anti-Syphon (Silent Trap) with Multifit Outlet
Available in 1.1/4" & 1.1/2" Sizes
Manufactured in Polypropylene
Conforms to BS EN 274-1:2002

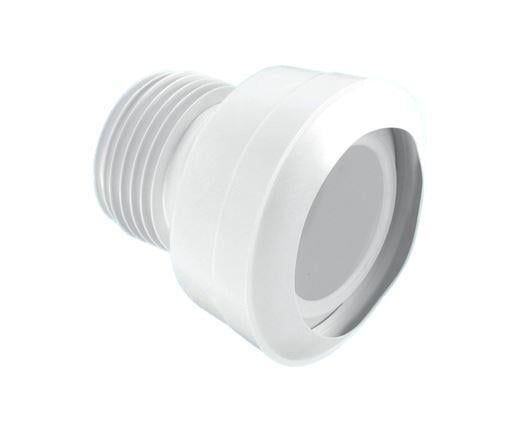

WC Connector Straight
Available in 75mm, 90mm, 110mm
Patented Lock Ring to give a superior, tighter connection
White color to match sanitary ware
Complies with BS 5627:1984
Manufactured in EVA

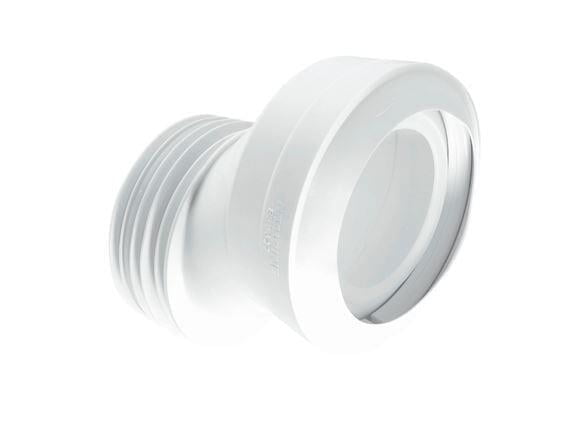

Offset WC Connector
20 mm & 40 mm Offset Available
Patented Lock Ring to give a superior, tighter connection
White color to match sanitary ware
Complies with BS 5627:1984
Manufactured in EVA

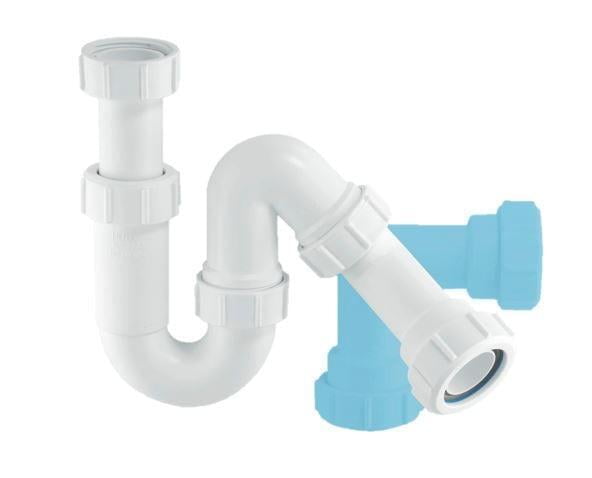

Tubular Swivel All-in-One Trap
75 mm Water Seal with Multifit Outlet
Adjustable Inlet hence suitable for Repairs
Trap Outlet can be Swiveled into 'P', 'S' or 'Q' Position
Manufactured in Polypropylene
Conforms to EN 274-1:2002

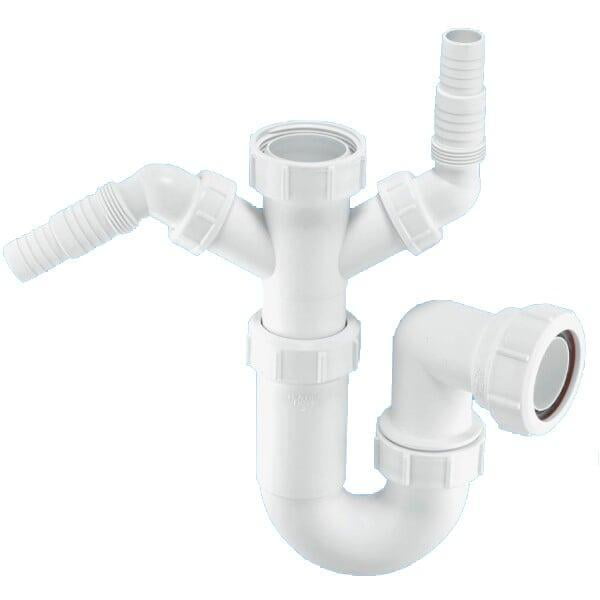

Sink Trap Twin 135° Nozzles
75 mm Water Seal with 1.1/2" Multifit Outlet
Adjustable Inlet hence suitable for Repairs
Can accept discharge from Washing and/or Dish Washer
Manufactured in Polypropylene
Conforms to EN 274-1:2002

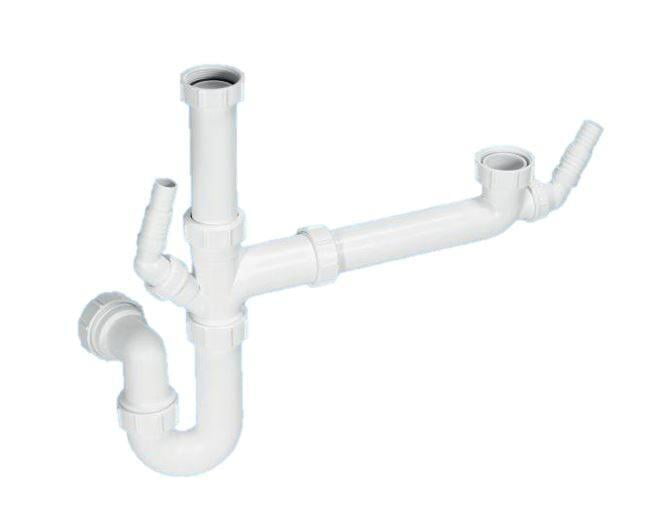

Double Bowl Sink Kit
Available with 1 or 2 nozzles to accept discharge fro domestic appliances
Supplied with 1.1/2" x 75mm Water Seal Swivel P Trap
Manufactured in Polypropylene
Conforms to EN 274-1:2002
